Lightwell Technologies provides advanced printing solutions for both SMT and selected semiconductor manufacturing processes, in partnership with HIT, a specialist manufacturer of high-precision screen printing equipment.
HIT printing platforms are designed to support a wide range of PCB and substrate applications, from standard board production to large-format and specialty boards used in advanced electronics manufacturing. Through this partnership, Lightwell delivers reliable, scalable, and application-driven printing solutions tailored to customer production requirements.
(PCB length up to 700 mm)

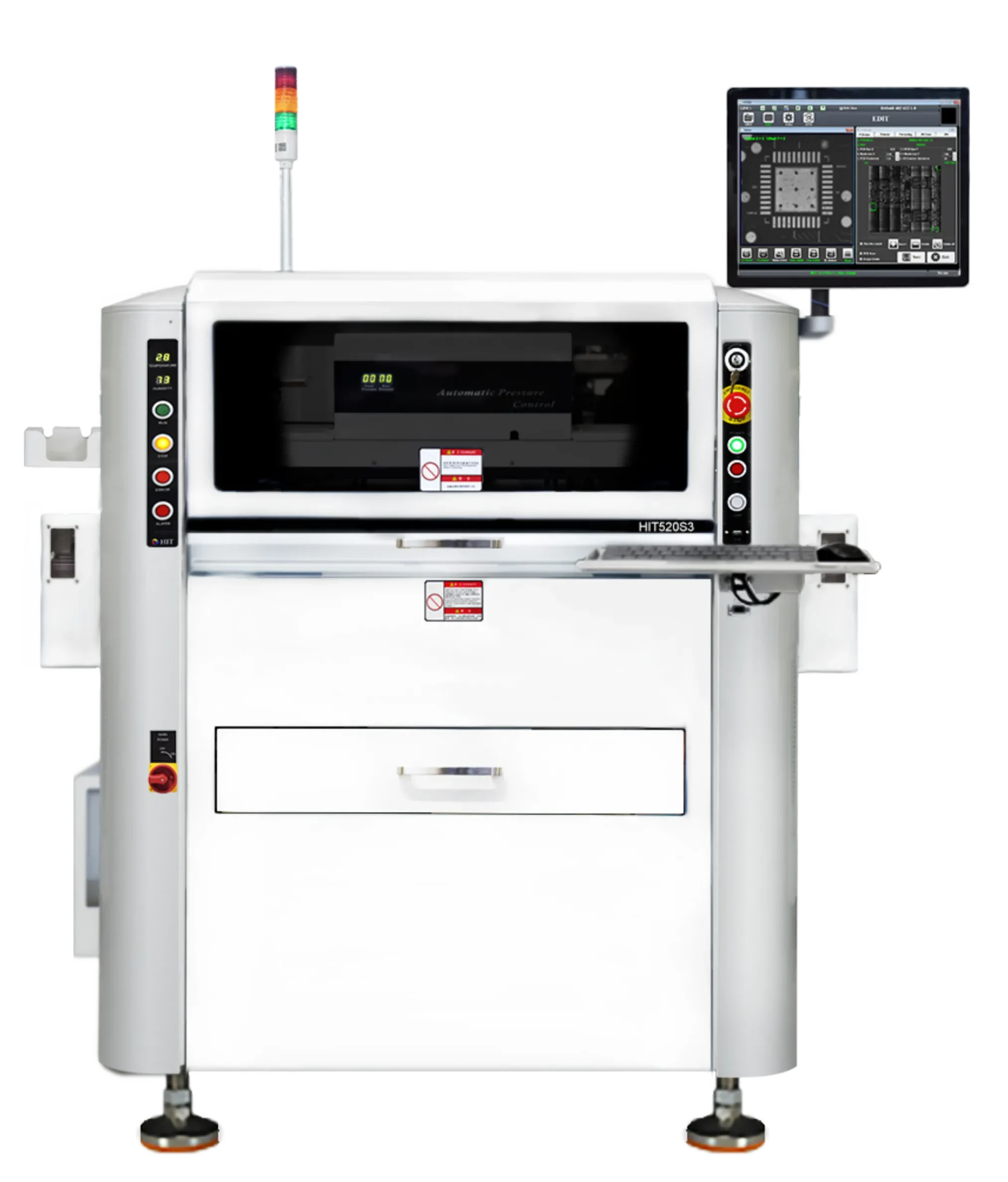

HIT standard board printers are engineered for high-precision and high-repeatability printing applications commonly found in SMT production lines and selected semiconductor-related processes.
These systems are optimized for conventional board sizes and are well suited for customers seeking stable performance, consistent print quality, and ease of integration into existing production environments.
Final model selection and specifications depend on application requirements.
| Model | S1 | S2 | S3 | S5 |
| Max. PCB size | 510 x 420mm | 510 x 500 / 600 x 500 (single sided PCB) | 510 x 500 / 600 x 500 (single sided PCB) | 650 x 610mm |
| Print accuracy | Alignment accuracy up to ±12.5 µm @ 6σ Printing repeatability ±25 µm @ 6σ (Cpk ≥ 2) | |||
| Cycle time (exclude print time) | 8 sec | 9 sec | 8 sec | 10 sec |
| Air supply | 4 ~ 6kg/cm2 | |||
| Power supply | 220V±10% single phase, Max 1Kw 50/60Hz | |||
| Weight* | Approx. 900kg (specifications may vary slightly by configuration) | |||
| Dimension L x W x H | 1,424 x 1,270 x 1,450mm | 1,424 x 1,270 x 1,450mm | 1,424 x 1,574 x 1,450mm | 1,744 x 1,652 x 1,450mm |
(PCB length above 700 mm)

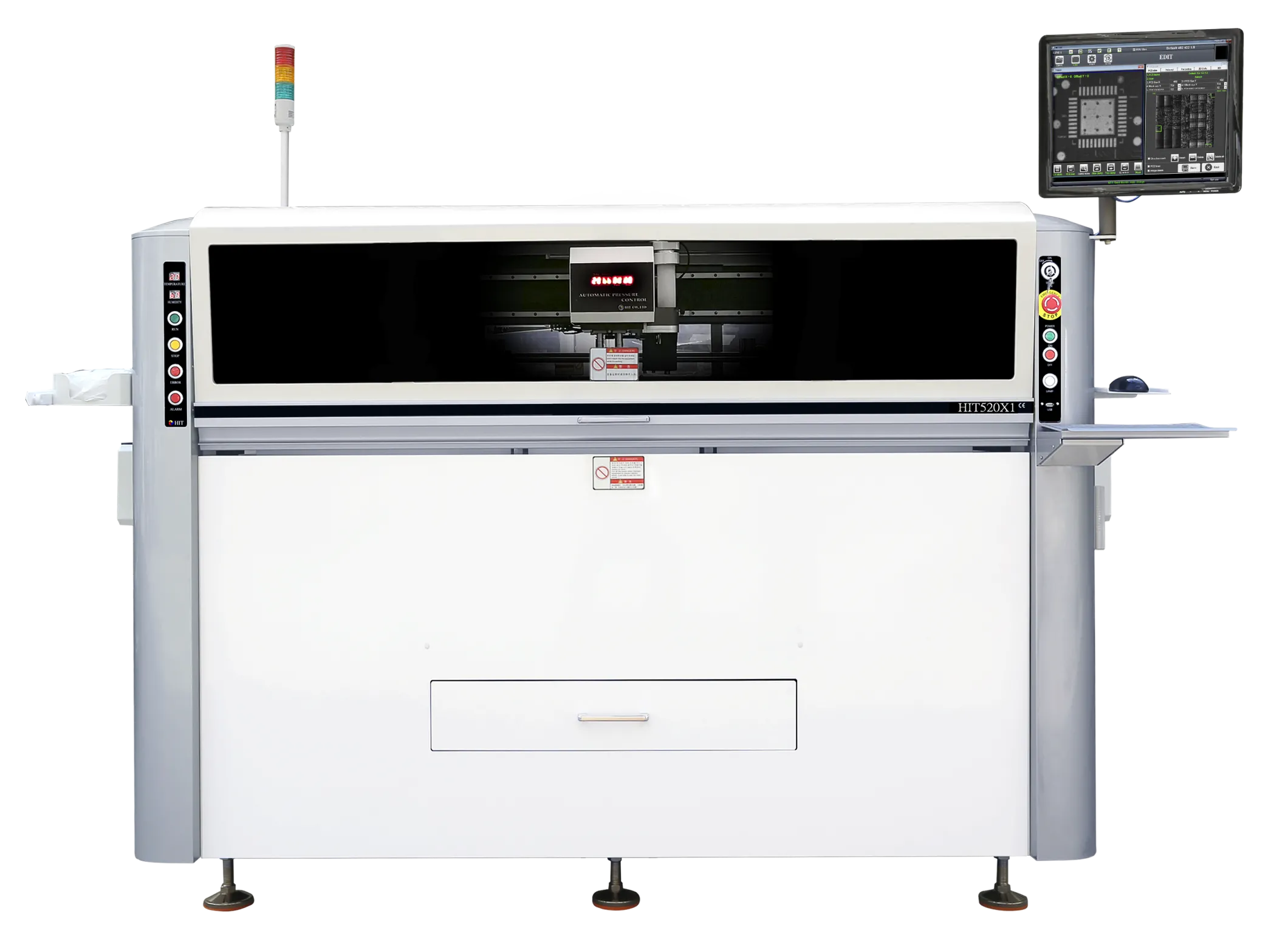

For oversized PCB and large-format substrate applications, HIT offers dedicated large board printing solutions specifically designed to handle extended board lengths with improved stability and accuracy.
Unlike conventional large board systems that rely on Y-axis printing configurations, HIT large board printers are engineered to print along the X-axis, providing enhanced process stability and alignment accuracy when handling long or heavy boards.
This design approach helps minimize common printing challenges associated with large-format boards, such as misalignment, print inconsistency, and handling-related defects.
Final model selection and specifications depend on application requirements.
| Model | X1 | X2 | X3 | X5 |
| Max. PCB size | 850 x 550mm | 1220 x 600mm | 1550 x 600mm | 2000 x 800mm |
| Print accuracy |
Alignment accuracy up to ±12.5 µm @ 6σ Printing repeatability ±25 µm @ 6σ (Cpk ≥ 2) | |||
| Cycle time (exclude print time) | 13 sec | 15 sec | 15 sec | 24 sec |
| Air supply | 4 ~ 6kg/cm2 | |||
| Power supply | 220V±10% single phase Max 1Kw 50/60Hz | |||
| Weight | Approx. 1200kg | Approx. 1300kg | Approx. 1400kg | Approx. 2500kg |
| Dimension L x W x H | 2,139 x 1,471 x 1,497mm | 2,383 x 1,471 x 1,497mm | 2,739 x 1,471 x 1,497mm | 3,170 x 1,815 x 1,512mm |
HIT printing solutions support a broad range of manufacturing applications, including but not limited to:
Lightwell works closely with customers to evaluate application requirements and recommend suitable printer configurations based on board size, process flow, and production objectives.
As a regional solutions integrator, Lightwell Technologies provides:
By combining HIT’s printing technology with Lightwell’s regional expertise, customers benefit from a well-aligned, application-focused printing solution that supports both current and future production needs.
