In partnership with IEMME
Lightwell Technologies offers specialized thermal processing and curing solutions for conformal coating, advanced electronics assembly, and selected semiconductor-related applications, in partnership with IEMME, a European manufacturer of high-quality thermal process equipment.
These systems are designed to deliver stable curing performance, precise process control, and production scalability, supporting customers with diverse coating materials, board sizes, and throughput requirements.
Efficient UV curing for conformal coating applications

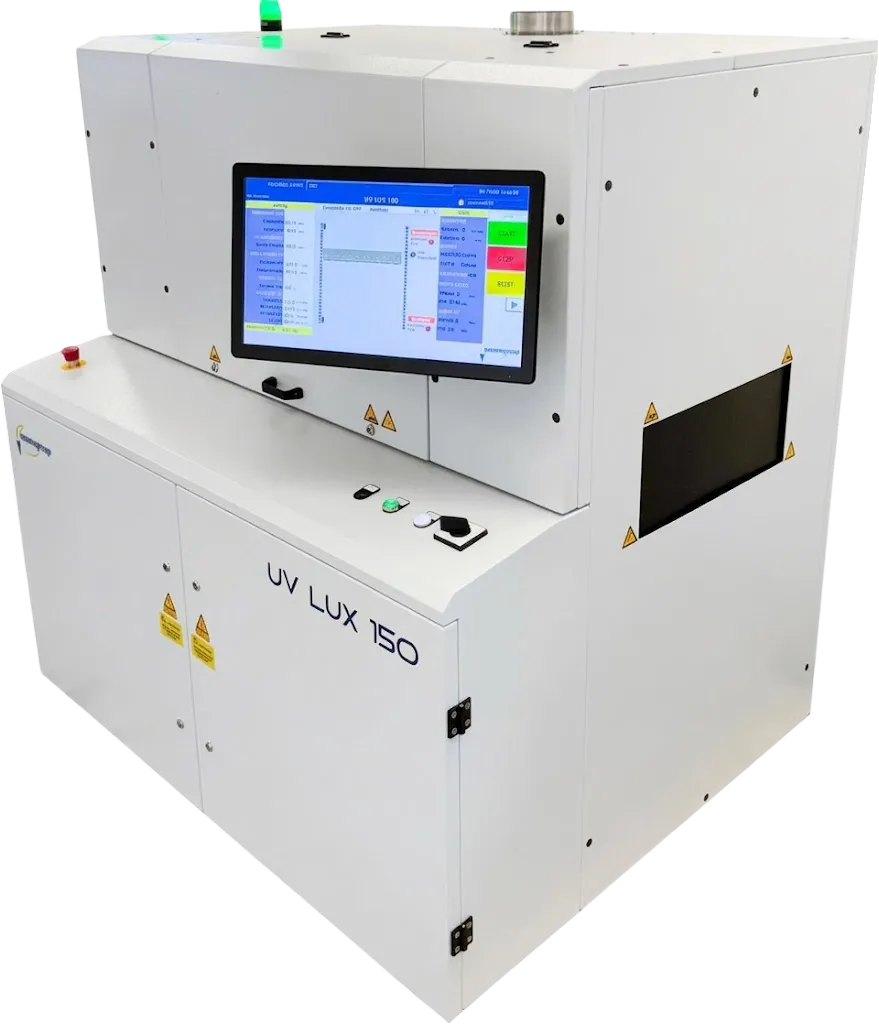

The IEMME UV LED LUX Series is designed for fast, energy-efficient curing of UV and UV-LED conformal coating materials. Powered by high-quality UV LED lamps and controlled by a real-time operating system, the LUX series enables precise process tuning for different PCB designs and coating chemistries.
Key advantages include reduced energy consumption, shorter cycle times, long LED lifetime, and a compact machine footprint. Integrated safety systems prevent UV light and gas dispersion, ensuring safe operation in production environments.
| Model | Machine Dimension L x W (mm) | Curing Area L x W (mm) | Type of Applicable Lamps | Voltage | Control System | Main Options |
|---|---|---|---|---|---|---|
| UV LUX 100 | 1000 x 1250 |
400 x 400 400 x 500 (option) | UVA (395 – 365) | 230V + N |
Omron PLC with real time operations Software with 10” touch screen |
- Export data, ModBus TCP-IP protocol, OPC-UA - Auto process loading 1D - Remote control |
| UV LUX 150 | 1500 x 1250 |
600 x 400 600 x 500 (option) |
UVA (395 – 365) Or Multi-frequency (UVA+UVB+UVC) | 230V + N |
