Reflow Soldering Solutions

We deliver reliable, scalable, and application-driven reflow soldering solutions aligned with customer manufacturing requirements.

Reflow Soldering Solutions

In partnership with IEMME

Lightwell Technologies provides reliable reflow soldering solutions for SMT assembly and selected semiconductor-related manufacturing processes, in partnership with IEMME, a specialist manufacturer of thermal processing equipment.

Reflow ovens are a critical part of the SMT production line, responsible for forming consistent and reliable solder joints through precise thermal profiling. IEMME’s IOS series reflow ovens are designed to support a wide range of production volumes, board types, and process requirements, delivering stable temperature control and repeatable soldering performance.

Low to Medium Production Volume

These systems are suitable for customers seeking high-quality reflow performance with a compact footprint, ideal for small to medium production environments and flexible manufacturing lines.

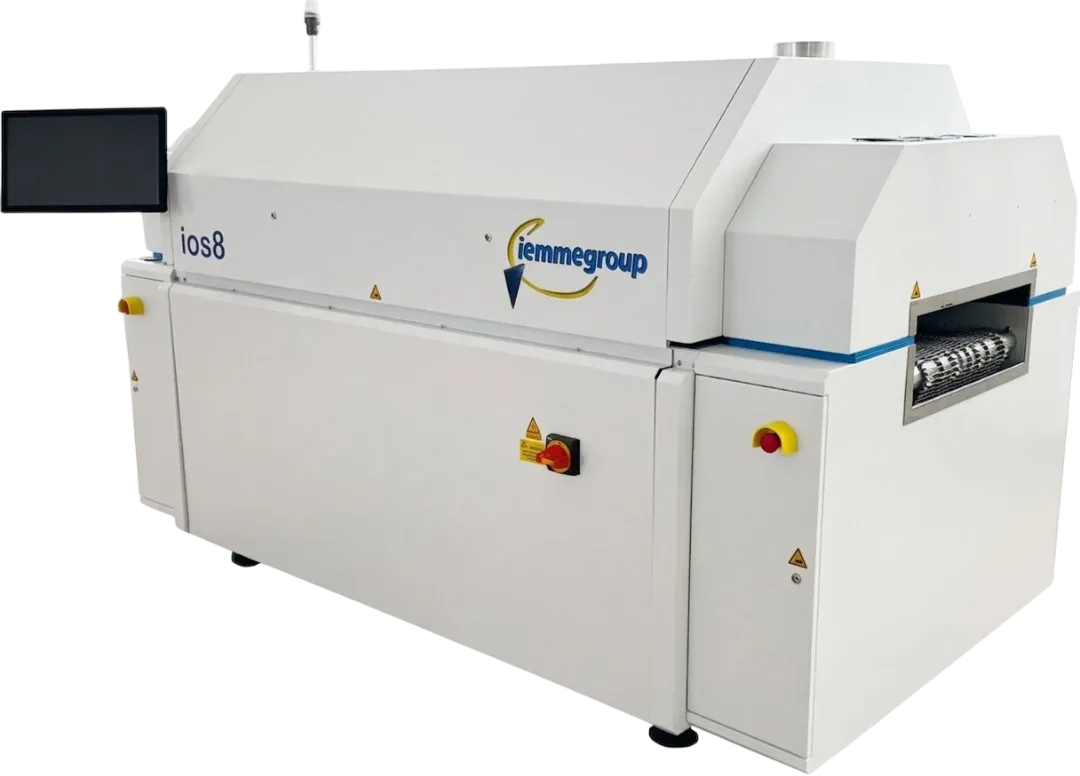

low to medium_IOS8

Representative model

  • IOS 8

Key characteristics

  • Full hot air convection heating
  • Multiple conveyor configurations (mesh, chain, central support options)
  • Independent temperature control for top and bottom heating zones
  • User-friendly operation with recipe management and remote support capability
  • Well suited for standard SMT applications and mixed production environments
Request Product Catalogue

Medium to High Production Volume

Designed for higher throughput and increased process stability, these models support more complex thermal profiles and demanding production conditions.

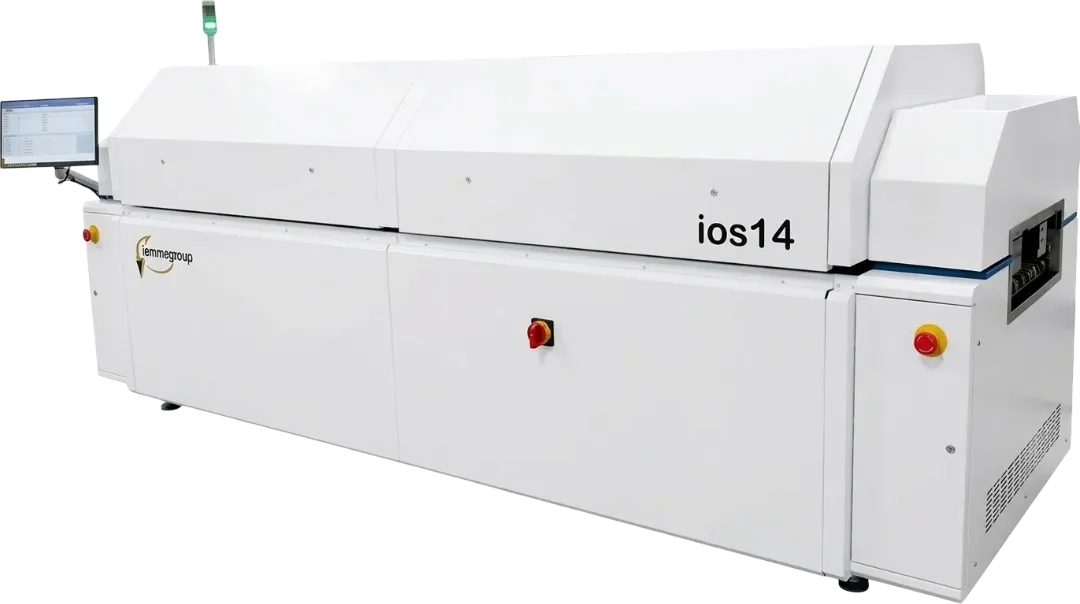

medium to high_IOS14

Representative model

  • IOS 14
  • IOS 16

Key characteristics

  • Extended heating zones for improved thermal uniformity
  • Multiple cooling zones for controlled solder joint formation
  • Stable conveyor systems for consistent board transport
  • Suitable for higher-density assemblies and continuous production operation
  • Configurable options to match different board sizes and process flows
Request Product Catalogue

High Production Volume

These systems are intended for high-throughput manufacturing environments requiring maximum thermal control, extended heating zones, and advanced cooling capability.

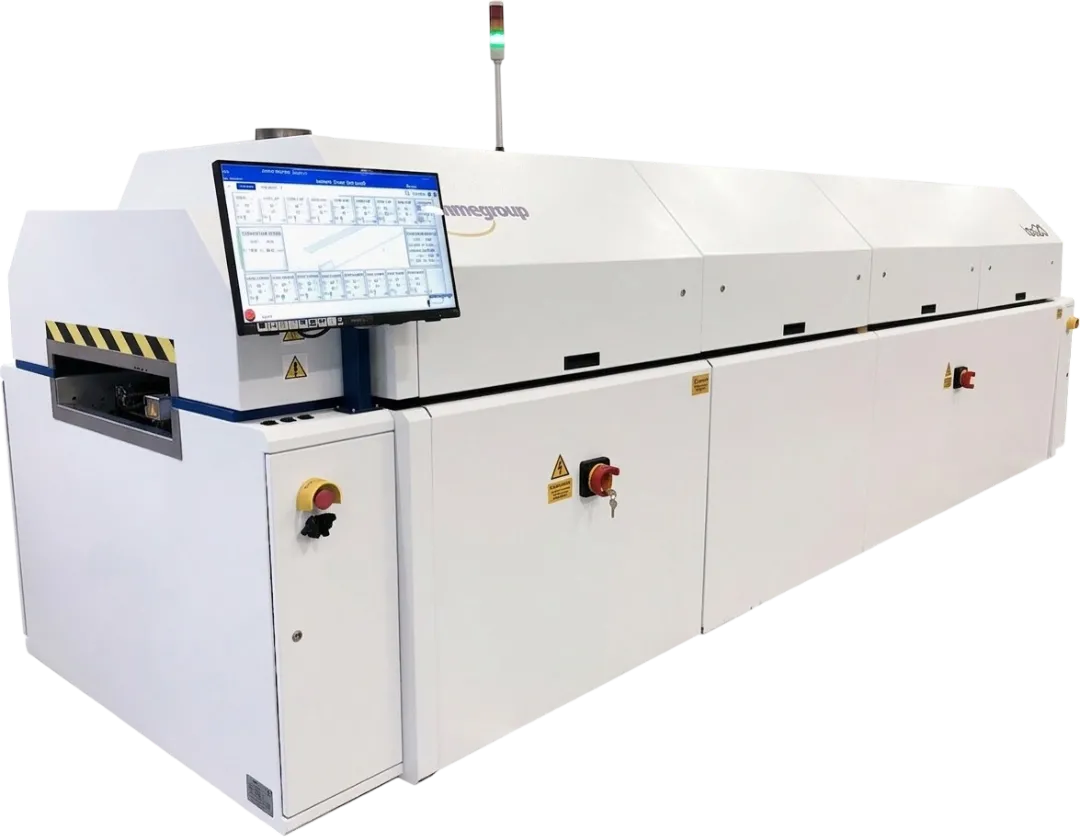

high_IOS20

Representative model

  • IOS 20
  • IOS 24

Key characteristics

  • Large number of independently controlled heating zones
  • Advanced cooling configurations for demanding process windows
  • Designed for long production runs and high-volume SMT lines
  • Suitable for complex assemblies and high thermal stability requirements
Request Product Catalogue

Specifications

ModelIOS8IOS14IOS16IOS20IOS24
Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C
Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support
Tunnel Length1960 mm3000 mm3600 mm4200 mm4600 mm
Process Zone8 total heating zones (4 top + 4 bottom), fan cooling system12 total heating zones (6 top + 6 bottom), 2 cooling zones14 total heating zones (7 top + 7 bottom), 2 cooling zones16 total heating zones (8 top + 8 bottom), 4 cooling zones20 total heating zones (10 top + 10 bottom), 4 cooling zones
External Dimension2600 × 1510 × 1520 mm4000 × 1510 × 1524 mm4450 × 1510 × 1524 mm5000 × 1510 × 1524 mm5900 × 1510 × 1524 mm
Weight800 kg approx.1300 kg approx.1400 kg approx.1600 kg approx.1800 kg approx.

IOS8

Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C

Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support

Tunnel Length1960 mm

Process Zone8 total heating zones (4 top + 4 bottom), fan cooling system

External Dimension2600 × 1510 × 1520 mm

Weight800 kg approx.

IOS14

Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C

Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support

Tunnel Length3000 mm

Process Zone12 total heating zones (6 top + 6 bottom), 2 cooling zones

External Dimension4000 × 1510 × 1524 mm

Weight1300 kg approx.

IOS16

Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C

Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support

Tunnel Length3600 mm

Process Zone14 total heating zones (7 top + 7 bottom), 2 cooling zones

External Dimension4450 × 1510 × 1524 mm

Weight1400 kg approx.

IOS20

Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C

Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support

Tunnel Length4200 mm

Process Zone16 total heating zones (8 top + 8 bottom), 4 cooling zones

External Dimension5000 × 1510 × 1524 mm

Weight1600 kg approx.

IOS24

Control UnitOMRON PLC NX-Series controlled, real time operating system, PID temperature control, ±3°C

Type of ConveyorMesh / Chain / Mesh + Chain / Chain + Central Support

Tunnel Length4600 mm

Process Zone20 total heating zones (10 top + 10 bottom), 4 cooling zones

External Dimension5900 × 1510 × 1524 mm

Weight1800 kg approx.

* Specifications and appearance are subject to change without prior notice.

Solution Delivery

Solution Delivery by Lightwell

Lightwell works closely with customers to assess production objectives, board characteristics, and process constraints, and recommends suitable reflow oven configurations accordingly.

Through its partnership with IEMME, Lightwell delivers scalable and application-driven reflow soldering solutions aligned with customer manufacturing needs.
