We deliver reliable, process-stable wave soldering systems for through-hole and mixed-technology PCB assembly.
In partnership with IEMME
Lightwell Technologies offers a comprehensive range of wave soldering solutions in partnership with IEMME, an established European manufacturer specializing in high-quality soldering systems for SMT and mixed-technology production.
The IEMME wave soldering portfolio supports applications ranging from prototyping and low-volume assembly to medium and high-volume production environments. All systems are engineered for process stability, ease of maintenance, and consistent soldering quality in both leaded and lead-free processes.
Compact solution for prototyping, R&D, and low-volume assembly environments

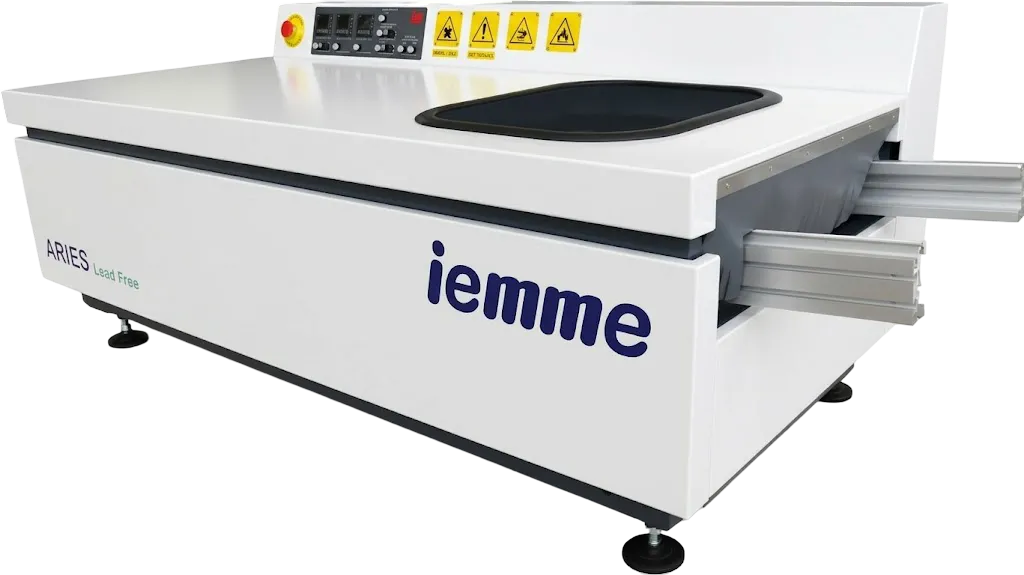

ARIES is a compact and reliable benchtop wave soldering system designed for low-volume production, prototyping, and laboratory environments. Its simple operation, energy-efficient design, and durable construction make it ideal for customers seeking dependable soldering performance with minimal footprint.
Designed for small to medium production with improved throughput and process stability

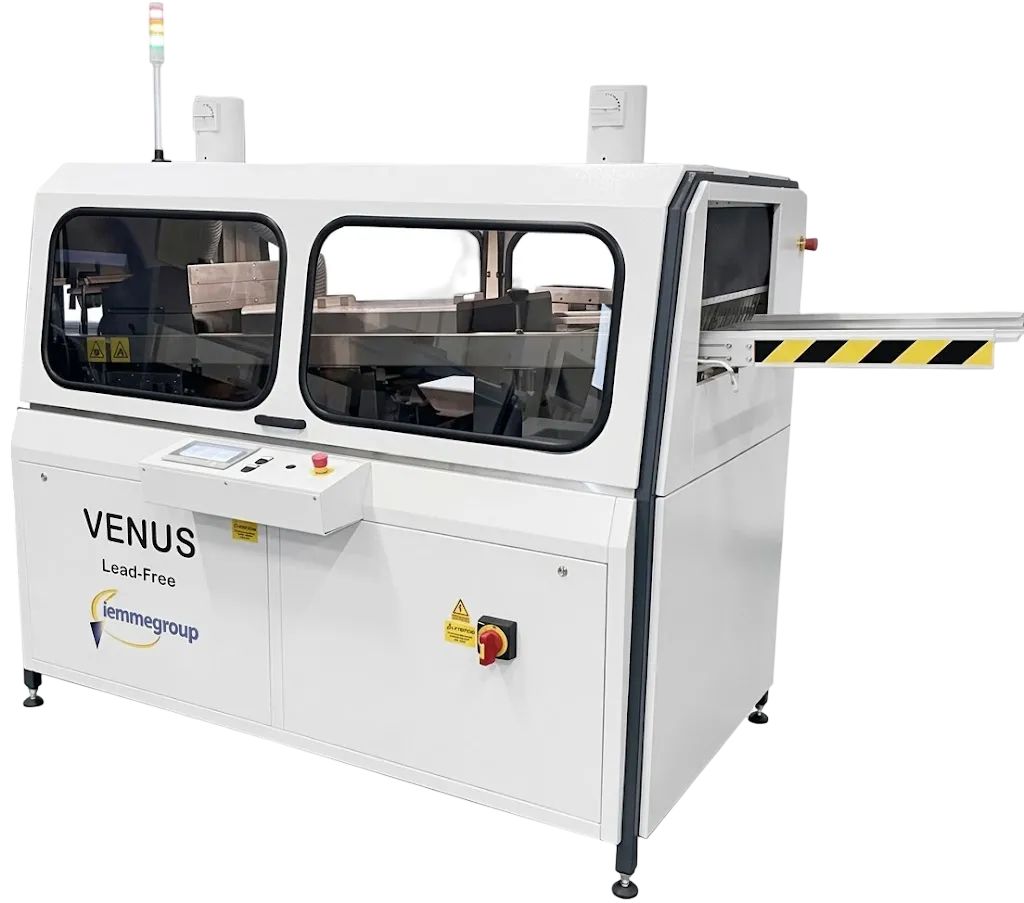

VENUS is designed for customers transitioning from prototyping to small and medium production volumes. It provides stable soldering performance with automated control features while maintaining a compact system layout.
Built for consistent medium to high volume manufacturing operations

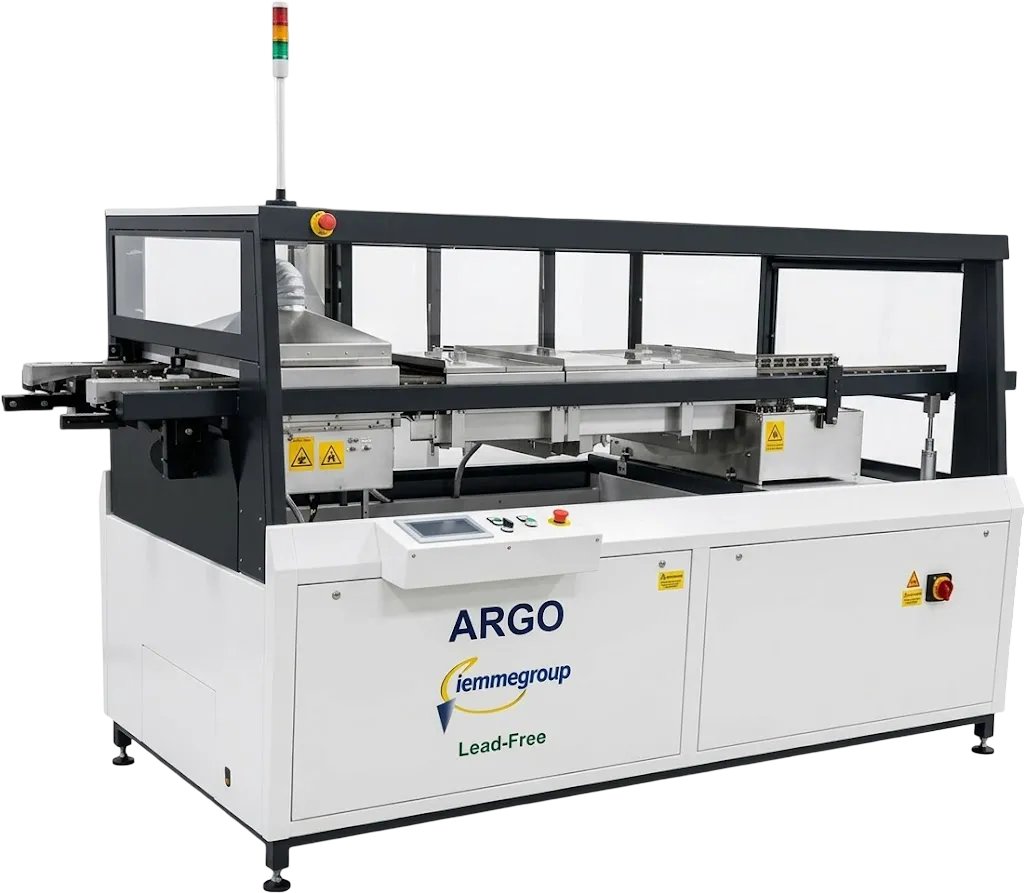

ARGO is engineered for higher throughput production lines requiring improved thermal control and enhanced process repeatability. It supports a wider range of SMT assemblies while maintaining a balanced system footprint.
Optimized for larger production lines requiring extended thermal control and higher capacity

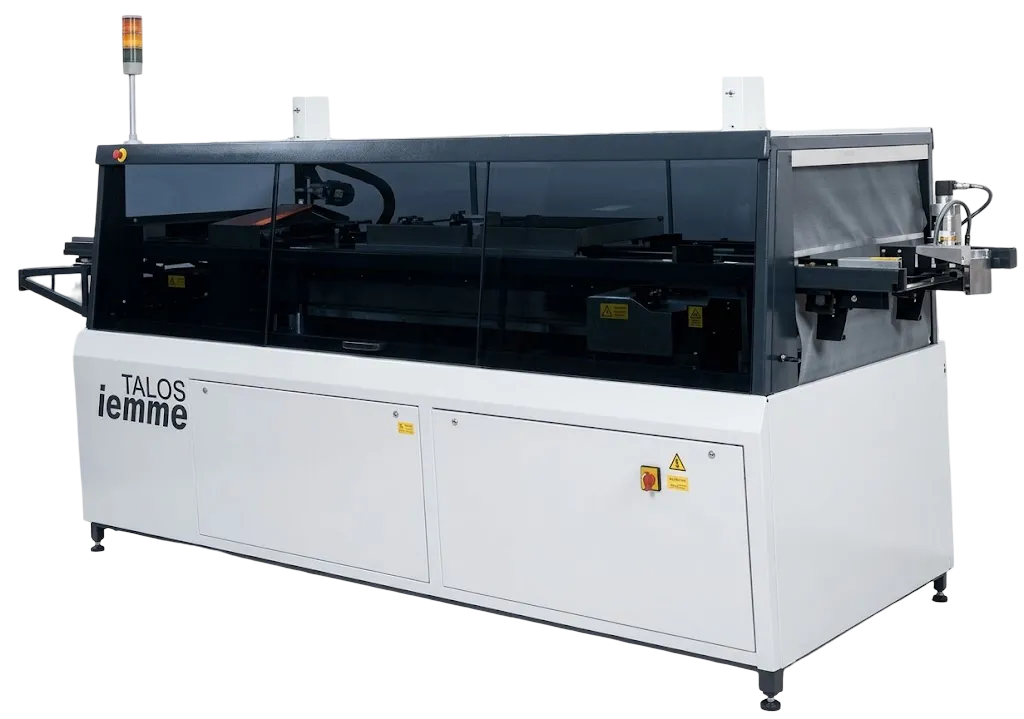

TALOS is a flexible wave soldering machine designed for manufacturers requiring higher capacity, configurable preheating, and advanced fluxing control. It is available in inline and carrier-type configurations to suit different production flows.
Engineered for high-volume manufacturing with robust construction and advanced process control

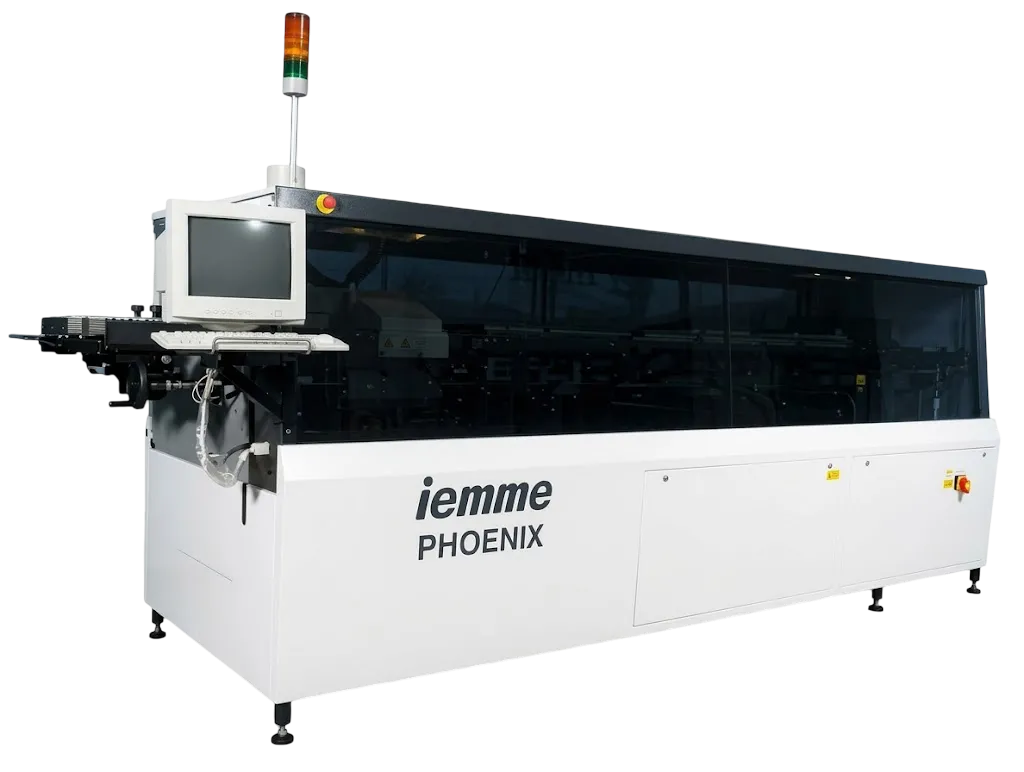

PHOENIX represents IEMME’s high-capacity wave soldering solution for demanding, high-volume production environments. It is designed to support continuous operation with enhanced thermal control, fluxing flexibility, and serviceability.
| Model | ARIES | VENUS | ARGO | TALOS | PHOENIX |
|---|---|---|---|---|---|
| Max PCB Dimension | 300 × 400 mm | 400 × 400 mm | 400 × 400 mm | 400 × 400 mm | 400 × 400 mm |
| Control Unit | PID controlled digital instruments for solder pot and preheater | OMRON PLC NX-Series controlled, Real-time operating system, PID temperature control, ±2°C | |||
| Main Wave | Bi-directional Wave | ||||
| SMD Wave (option) | O-Wave (Orbital) | Jet Flow | Jet Flow | Jet Flow | Jet Flow |
| Solder Pot Capacity | 150 kg | 270 kg | 315 kg | 475 kg | 475 kg |
| Tunnel Length | 500 mm | 700 mm | 1100 mm | 1600 mm | 2100 mm |
| Preheating Unit | 1 IR Panel | 1 IR Panel | 2 IR Panel | 3 (1 Air Unit + 2 IR Panel) | 4 (2 Air Unit + 2 IR Panel) |
| External Dimension | 1730 × 870 × 660 mm | 2250 × 1350 × 1770 mm | 3160 × 1350 × 1870 mm | 4200 × 1350 × 1800 mm | 4700 × 1350 × 1800 mm |
| Weight | 300 kg approx. | 500 kg approx. | 600 kg approx. | 700 kg approx. | 800 kg approx. |
Max PCB Dimension300 × 400 mm
Control UnitPID controlled digital instruments for solder pot and preheater
Main WaveBi-directional Wave
SMD Wave (option)O-Wave (Orbital)
Solder Pot Capacity150 kg
Tunnel Length500 mm
Preheating Unit1 IR Panel
External Dimension1730 × 870 × 660 mm
Weight300 kg approx.
Max PCB Dimension400 × 400 mm
Control UnitOMRON PLC NX-Series controlled, Real-time operating system, PID temperature control, ±2°C
Main WaveBi-directional Wave
SMD Wave (option)Jet Flow
Solder Pot Capacity270 kg
Tunnel Length700 mm
Preheating Unit1 IR Panel
External Dimension2250 × 1350 × 1770 mm
Weight500 kg approx.
Max PCB Dimension400 × 400 mm
Control UnitOMRON PLC NX-Series controlled, Real-time operating system, PID temperature control, ±2°C
Main WaveBi-directional Wave
SMD Wave (option)Jet Flow
Solder Pot Capacity315 kg
Tunnel Length1100 mm
Preheating Unit2 IR Panel
External Dimension3160 × 1350 × 1870 mm
Weight600 kg approx.
Max PCB Dimension400 × 400 mm
Control UnitOMRON PLC NX-Series controlled, Real-time operating system, PID temperature control, ±2°C
Main WaveBi-directional Wave
SMD Wave (option)Jet Flow
Solder Pot Capacity475 kg
Tunnel Length1600 mm
Preheating Unit3 (1 Air Unit + 2 IR Panel)
External Dimension4200 × 1350 × 1800 mm
Weight700 kg approx.
Max PCB Dimension400 × 400 mm
Control UnitOMRON PLC NX-Series controlled, Real-time operating system, PID temperature control, ±2°C
Main WaveBi-directional Wave
SMD Wave (option)Jet Flow
Solder Pot Capacity475 kg
Tunnel Length2100 mm
Preheating Unit4 (2 Air Unit + 2 IR Panel)
External Dimension4700 × 1350 × 1800 mm
Weight800 kg approx.
* Specifications and appearance are subject to change without prior notice.
IEMME wave soldering solutions supplied by Lightwell support a wide range of applications, including
Lightwell works closely with customers to assess production requirements and recommend the most suitable wave soldering configuration based on throughput, board design, and process complexity.
